4A0-113 Questions Pass on Your First Attempt Dumps for Nokia Network Routing Specialist II (NRS II) Certified
4A0-113 Practice Test Pdf Exam Material
Earning the Nokia OSPF Routing Protocol certification can enhance an IT professional's career prospects by demonstrating their expertise in managing and maintaining large-scale networks. Nokia OSPF Routing Protocol Exam certification validates the candidate's skills in designing, implementing, and troubleshooting complex network infrastructures using Nokia Service Routers. Nokia OSPF Routing Protocol Exam certification is globally recognized and can open up new job opportunities for network engineers, network administrators, and other IT professionals.
Nokia OSPF Routing Protocol Exam is an advanced-level certification that requires candidates to have a solid understanding of networking concepts, routing protocols, and Nokia systems. It is recommended that candidates have at least two years of experience working with Nokia equipment and have completed the Nokia Network Routing Specialist I and II courses before attempting 4A0-113 exam.
NEW QUESTION # 41

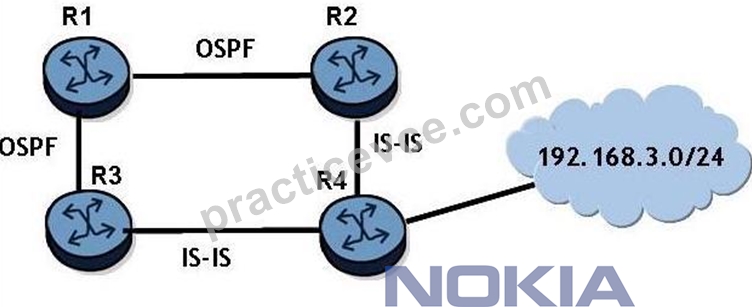

Click the exhibit button.
If router R2 redistributes the IS-IS route to 192.168.3.0/24 into OSPF, router R3 will receive two routes to 192.168.3.0/24. What will be the preference of these two routes? Assume that all IS-IS routers are L1/L2 capable and are in the same are a. Choose two answers.
- A. The OSPF internal preference
- B. The IS-IS Level 1 internal preference
- C. The IS-IS Level 1 external preference
- D. The IS-IS Level 2 internal preference
- E. The IS-IS Level 2 external preference
- F. The OSPF external preference
Answer: B,F
NEW QUESTION # 42

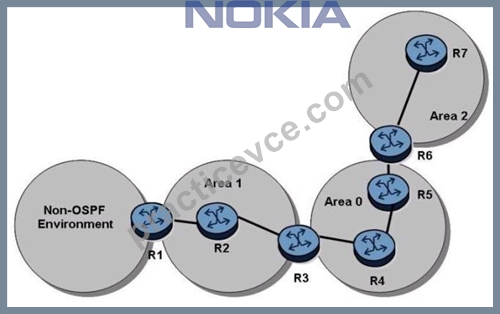

Click the exhibit button.
In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding Type 4 LSA generation is true?
- A. Router R1 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.
- B. Router R3 generates a Type 4 LSA that is flooded to area 0, and router R6 generates a Type 4 LSA that is flooded to area 2.
- C. Router R3 generates a Type 4 LSA that is flooded to areas 0 and 2.
- D. Router R3 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.
Answer: B
NEW QUESTION # 43
A router receives an OSPF database description packet from a neighbor that references an LSA, which is already in the router's LSDB. The sequence number in the DBD packet is lower than the sequence number of the LSA in the LSDB.
What action does the router take?
- A. The router takes no action.
- B. The router sends a link-state acknowledgement to its neighbor.
- C. The router sends a link-state request to its neighbor.
- D. The router sends a link-state update to its neighbor.
- E. The router updates the information in its LSDB with the information received from its neighbor.
Answer: D
NEW QUESTION # 44
Which of the following conditions will prevent an OSPF adjacency from reaching the full state? Choose three answers.
- A. System interface not included in OSPF
- B. MTU mismatch
- C. Incorrect subnet mask
- D. Different metric set on each end of the link
- E. Router ID not defined
- F. Area ID not the same
Answer: B,C,F
NEW QUESTION # 45

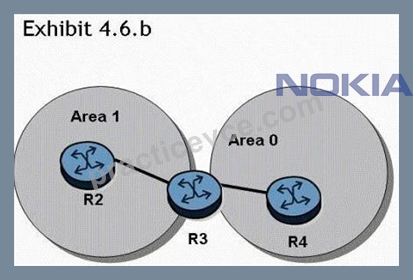

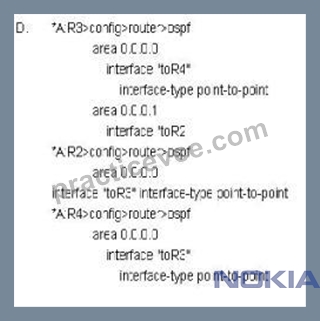

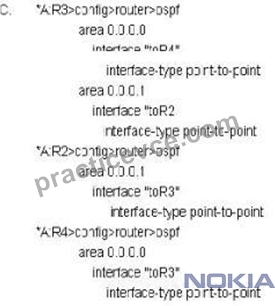

Click the exhibit button.
Which of the following would correctly configure routers R2, R3, and R4?
- A. Option C
- B. Option D
- C. Option A
- D. Option B
Answer: A
NEW QUESTION # 46
Static routing will be used in a network between a corporate head office, with many connected networks, and a branch office, with one connection to the head office. Which of the following best describes the likely configuration?
- A. The corporate head office router and the branch office router will both have specific static routes.
- B. The corporate head office router will have a default route and the branch site will have a more specific static route.
- C. The corporate head office router and the branch router will both have default routes.
- D. The corporate head office router will have a more specific static route and the branch office router will have a default route.
Answer: D
NEW QUESTION # 47
What is the default preference value for a static route in the Nokia 7750 SR?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: B
NEW QUESTION # 48
When an OSPF adjacency is stuck in the "ExchStart" state, what is the most likely cause?
- A. OSPF is not enabled on one of the routers
- B. The MTU does not match on both interfaces
- C. The Router ID is the same on both routers
- D. A OSPF Hello has not been received from the neighbor
Answer: B
NEW QUESTION # 49
What type of LSA is used to flood information about prefixes from one OSPF area to other attached areas?
- A. Type 7
- B. Type 1
- C. Type 4
- D. Type 3
Answer: D
NEW QUESTION # 50
An Nokia 7750 SR receives a route via an IS-IS LSP with internal reach ability, and receives the same route via an OSPF type 5 LSA.
If al protocol preferences are default, which route will be installed in the route table?
- A. Both routes will be installed, regardless of whether ECMP is enabled.
- B. The route learned via IS-IS will be installed.
- C. The route learned via the OSPF type 5 LSA will be installed.
- D. Both routes will be installed, if ECMP is enabled.
Answer: B
NEW QUESTION # 51
What are the types of networks supported on an Nokia 7750 SR for OSPF? (Choose 2)
- A. Point-to-Point
- B. Non-Broadcast Multi-Access
- C. Broadcast
- D. Point-to-Multipoint
Answer: A,C
NEW QUESTION # 52
Select the answer below that correctly lists the 5 different OSPF packet types.
- A. Hello, Link State Update, Link State Request, Link State Acknowledgement, Database Descriptor
- B. Hello, Link State Update, Link State Packet, Link State Acknowledgement, Database Descriptor
- C. Hello, Link State Refresh, Link State Update, Link State Acknowledgement, Link State Authentication
- D. Link State Update, Link State Refresh, Link State Acknowledgement, Database Descriptor, Notification
Answer: A
NEW QUESTION # 53
From the list below select the statements that describe the behavior of link state information aging. (Choose 2)
- A. The age for newly created link state information is set to 1200 for OSPF and 0 for IS-IS
- B. The age is incremented or decremented as it is flooded from router to router and as it is held in the topological database.
- C. The age for newly created link state information is set to 0 for OSPF and 1200 for IS-IS
- D. The age is incremented or decremented only as it is held in the topological database and not as it is flooded router to router.
Answer: B,C
NEW QUESTION # 54
An interface is configured on a router for OSPF but the command "show router ospf neighbor" does not show any neighbors. Which of the following is NOT a possible cause?
- A. An OSPF database description packet has not been received from the neighbor.
- B. The router has not received a valid OSPF Hello packet from its neighbor.
- C. The interface is included in a different area than the neighbor router.
- D. The interface facing the neighbor is down.
Answer: A
NEW QUESTION # 55

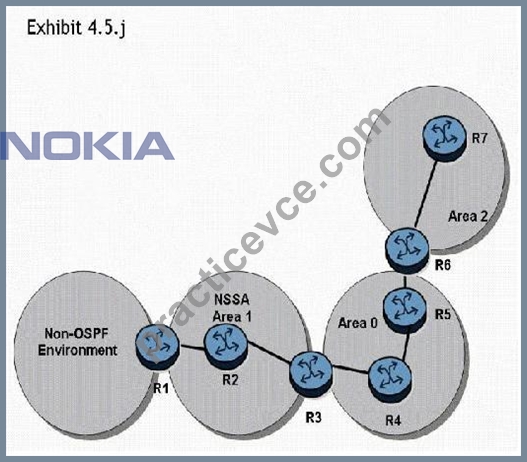

Click the exhibit button.
In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Which of the following statements regarding the OSPF LSAs in the network is true?
- A. Router R1 generates a type 7 LSA that is flooded through area 1. Router R3 generates a type 5 LSA that is flooded through areas 0 and 2.
- B. Router R1 generates a type 5 LSA that is flooded through area 1. Router R2 generates a type 7 LSA that is flooded through areas 0 and 2.
- C. Router R1 generates a type 7 LSA that is flooded through all OSPF areas.
- D. Router R1 generates a type 5 LSA that is flooded through all OSPF areas.
Answer: A
NEW QUESTION # 56
......
